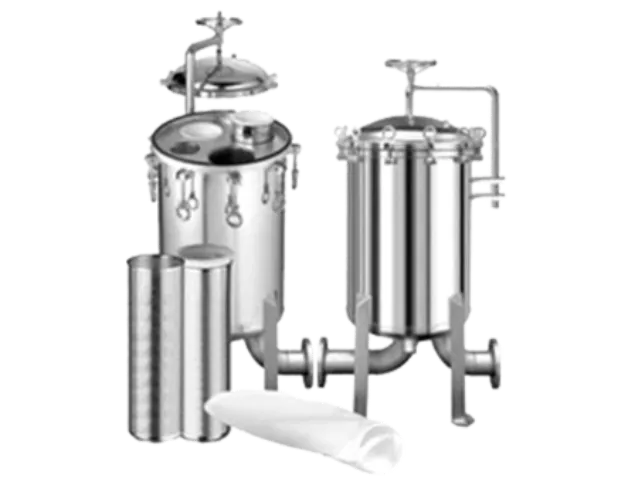

High Flow Multi-bag Filter
-
-
Direct passage channel design with low pressure drop and low negative pressure, reducing the chance of filter bag leakage; designed for full-flow, low-speed operation
-
Allows uniform filtration of liquid through filter bags, providing excellent filtration effectiveness
-
High-density O-ring, balanced compression design capable of enduring prolonged high-pressure environments
-
Inlet options include bottom inlet/bottom outlet, side inlet/side outlet, or side inlet/bottom outlet for selection
-
Slide-open top cover design for effortless, safe, and convenient operation
-
High-strength metal mesh for robust structure, protecting the filter bag and extending its lifespan
-
Intimate design of liquid buffer zone between barrel lip and filter bag to prevent liquid leakage when opening the top cover
-
-
Body MaterialSUS304 . SUS316 . SUS316LCaliber1/2” to 3” - threaded, flanged, various special fittings available on requestO-ringEPDM . VITONSurface TreatmentPickling, electrolysis, various special surface treatmentsOptional AccessoriesVarious filter bags, bag press, bag support rack, metal float ballFilter Cartridge Specifications10”、20”、30”、40”Design Pressure10Kg/cm2Operating Pressure7Kg/cm2Design Temperature100℃Operating Temperature75℃
-
Product Features Introduction
-
Direct passage channel design with low pressure drop and low negative pressure, reducing the chance of filter bag leakage; designed for full-flow, low-speed operation
-
Allows uniform filtration of liquid through filter bags, providing excellent filtration effectiveness
-
High-density O-ring, balanced compression design capable of enduring prolonged high-pressure environments
-
Inlet options include bottom inlet/bottom outlet, side inlet/side outlet, or side inlet/bottom outlet for selection
-
Slide-open top cover design for effortless, safe, and convenient operation
-
High-strength metal mesh for robust structure, protecting the filter bag and extending its lifespan
-
Intimate design of liquid buffer zone between barrel lip and filter bag to prevent liquid leakage when opening the top cover
-
-
Specification SheetBody MaterialSUS304 . SUS316 . SUS316LCaliber1/2” to 3” - threaded, flanged, various special fittings available on requestO-ringEPDM . VITONSurface TreatmentPickling, electrolysis, various special surface treatmentsOptional AccessoriesVarious filter bags, bag press, bag support rack, metal float ballFilter Cartridge Specifications10”、20”、30”、40”Design Pressure10Kg/cm2Operating Pressure7Kg/cm2Design Temperature100℃Operating Temperature75℃
