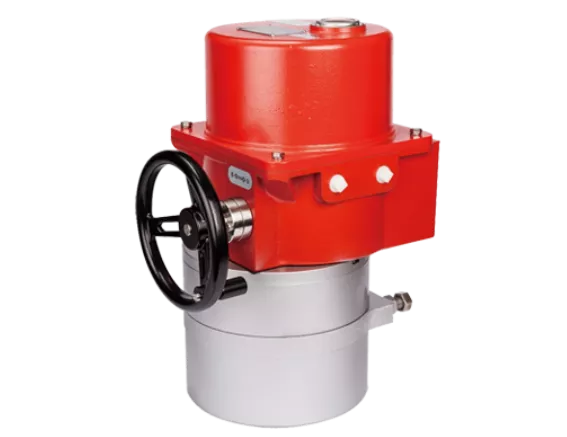

Direct-drive series installed on ISO 5211 platform specification valves (valves)
Professional certification
ISO 9001、CE、CSA、UL429、IP67
-
-
Bracket-mounted electric motor actuators need to be installed on ISO 5211 standard flat or butterfly valves
-
The UM/R series electric motor actuators are low-power, high-torque actuators
-
The entire housing is sealed with waterproof gaskets, achieving IP67 certification, suitable for various outdoor environments
-
Smooth opening speed effectively avoids water hammer, extending the lifespan of pipeline components
-
UM/R series electric motor actuators can be equipped with top window or side viewing ports to inspect valve position, or controlled via wiring control boxes with indicator lights
-
IP67 waterproof rating
-
Housing components are made of materials such as "NYLON," known for high temperature resistance, acid and alkali resistance, and impact resistance
-
Aluminum alloy housing is available as an optional purchase
Optional Accessories-
Temperature controller
-
Non-electrical micro switch (up to 2 sets)
-
Heater (including overheat protector)
-
Proportional controller
-
On-site control
-
Relay
-
Potentiometer (VR set)
Precautions-
When operating manually or during maintenance, always turn off the power first to prevent component damage and hazards. When using manual operation, it is recommended to use a wrench (8mm opening) with a length not exceeding 10 cm. Turn gently; if it feels tight, check if the valve body is locked before proceeding. Do not use excessive force to turn, as this may damage internal components.*Do not use other rods to rotate the handwheel, as this may damage the electric motor actuator and valve
-
After completing wiring work, check if the waterproof device (O-ring) is in place before tightening the casing. Ensure that the cable gland screws are securely tightened to prevent dust or rainwater ingress. (It is recommended that customer wiring should be a minimum of 6mm in diameter or larger.)
-
If two or more electric valves need to open or close simultaneously, install a relay for each valve. Do not connect them in series or parallel
-
When operating manually, ensure that the window pointer does not exceed the scale range to avoid damaging internal components. (For proportional controllers: variable resistor (VR) damage may occur.)
-
-
Weight62 kgManual deviceHandwheelFlange hole distance（ISO 5211）F14/F16
左右滑動看表格Model Motor Power 90° Rotation Switch Time (sec) Torque Value(±5%)
kgf-cm
AC110V(60Hz)Torque Value(±5%)
kgf-cm
AC220V(60Hz)No-Load Consumption Current AC
100V~120VAC
200V~240VUM-12 100W 143 35000 35000 1.2A 0.6A
Rated voltage(special voltages available on request)-
AC 100V ~ 120V
-
AC 200V ~ 240V
-
-
