Direct-drive series installed on ISO 5211 platform specification valves (valves)
Professional certification
ISO 9001、CE、CSA、UL429、IP67
-
-
Direct-drive electric motor actuators must be installed on ISO 5211 high-platform valves or butterfly valves
-

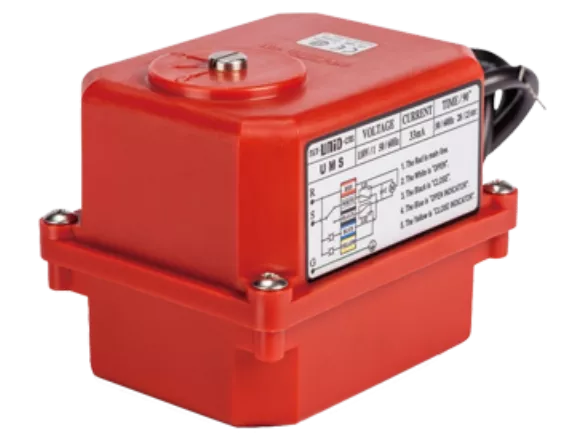

UM/R series electric motor actuators are low-power, high-torque devices
-
Sealed casing with waterproof seals, certified to IP67, suitable for installation in various outdoor environments
-
Smooth opening speed effectively prevents water hammer phenomenon, increasing the lifespan of pipe fittings
-
UM/R series electric motor actuators can be viewed from the top window or side to check valve position, or through wiring control boxes with indicator lights displaying position
-
Waterproof rating IP67
-
Casing made of materials such as "NYLON" with characteristics of high temperature resistance, acid and alkali resistance, and impact resistance
-
Aluminum alloy casing available as an optional purchase
Precautions-
When operating manually or during maintenance, always turn off the power first to prevent component damage and hazards. When using manual operation, it is recommended to use a wrench (8mm opening) with a length not exceeding 10 cm. Turn gently; if it feels tight, check if the valve body is locked before proceeding. Do not use excessive force to turn, as this may damage internal components.*Do not use other rods to rotate the handwheel, as this may damage the electric motor actuator and valve
-
After completing wiring work, check if the waterproof device (O-ring) is in place before tightening the casing. Ensure that the cable gland screws are securely tightened to prevent dust or rainwater ingress. (It is recommended that customer wiring should be a minimum of 6mm in diameter or larger.)
-
If two or more electric valves need to open or close simultaneously, install a relay for each valve. Do not connect them in series or parallel
-
When operating manually, ensure that the window pointer does not exceed the scale range to avoid damaging internal components. (For proportional controllers: variable resistor (VR) damage may occur.)
-
-
1 kgMotor power3~4WFlange hole distance（ISO 5211）F03/F05
左右滑動看表格Model Motor Power 90° Rotation Switch Time (sec) Torque Value(±5%)
kgf-cm
AC110V(60Hz)Torque Value(±5%)
kgf-cm
AC220V(60Hz)No-Load Consumption Current AC
100V~120VAC
200V~240VUMS 3~4W 23 105 105 33mA 33mA 左右滑動看表格Model Motor Power 90° Rotation Switch Time (sec) Torque Value(±5%)
kgf-cm
AC24V(60Hz)No-Load Consumption Current AC24V UMS 3~4W 23 90 170mA
Rated voltage(special voltages available on request)-
AC 100V ~ 120V
-
AC 200V ~ 240V
-
AC 24V
-
-
Product Features Introduction
-
Direct-drive electric motor actuators must be installed on ISO 5211 high-platform valves or butterfly valves
-
UM/R series electric motor actuators are low-power, high-torque devices
-
Sealed casing with waterproof seals, certified to IP67, suitable for installation in various outdoor environments
-
Smooth opening speed effectively prevents water hammer phenomenon, increasing the lifespan of pipe fittings
-
UM/R series electric motor actuators can be viewed from the top window or side to check valve position, or through wiring control boxes with indicator lights displaying position
-
Waterproof rating IP67
-
Casing made of materials such as "NYLON" with characteristics of high temperature resistance, acid and alkali resistance, and impact resistance
-
Aluminum alloy casing available as an optional purchase
Precautions-
When operating manually or during maintenance, always turn off the power first to prevent component damage and hazards. When using manual operation, it is recommended to use a wrench (8mm opening) with a length not exceeding 10 cm. Turn gently; if it feels tight, check if the valve body is locked before proceeding. Do not use excessive force to turn, as this may damage internal components.*Do not use other rods to rotate the handwheel, as this may damage the electric motor actuator and valve
-
After completing wiring work, check if the waterproof device (O-ring) is in place before tightening the casing. Ensure that the cable gland screws are securely tightened to prevent dust or rainwater ingress. (It is recommended that customer wiring should be a minimum of 6mm in diameter or larger.)
-
If two or more electric valves need to open or close simultaneously, install a relay for each valve. Do not connect them in series or parallel
-
When operating manually, ensure that the window pointer does not exceed the scale range to avoid damaging internal components. (For proportional controllers: variable resistor (VR) damage may occur.)
-
-
Specification Sheet1 kgMotor power3~4WFlange hole distance（ISO 5211）F03/F05 左右滑動看表格
Model Motor Power 90° Rotation Switch Time (sec) Torque Value(±5%)
kgf-cm
AC110V(60Hz)Torque Value(±5%)
kgf-cm
AC220V(60Hz)No-Load Consumption Current AC
100V~120VAC
200V~240VUMS 3~4W 23 105 105 33mA 33mA 左右滑動看表格Model Motor Power 90° Rotation Switch Time (sec) Torque Value(±5%)
kgf-cm
AC24V(60Hz)No-Load Consumption Current AC24V UMS 3~4W 23 90 170mA
Rated voltage(special voltages available on request)-
AC 100V ~ 120V
-
AC 200V ~ 240V
-
AC 24V
-
