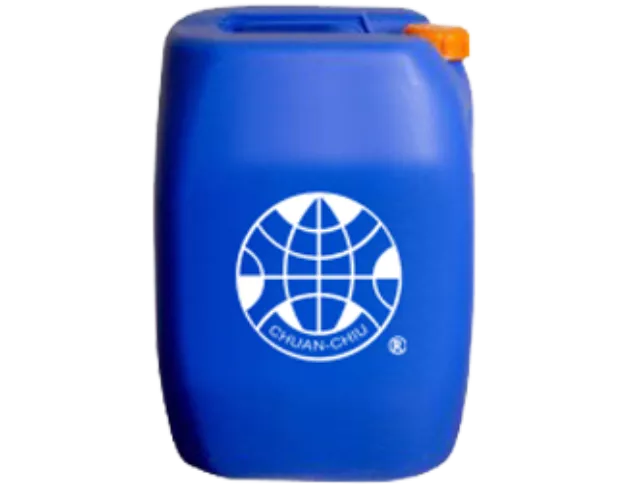

PHS-550 Boiler Water Deaerator
-
PHS-550 is a boiler water deaerator primarily composed of phosphates, dispersants, defoamers, and deoxygenating agents. It effectively prevents both scale deposition and oxygen pitting corrosion in boiler water systems operating at low to medium pressures (less than 25 kg/cm2), without a condensate water recovery system.
PHS-550 can be added either as a concentrate or after dilution. It is recommended to parallel inject it using a metering pump with the feedwater pump, ideally upstream of the feedwater pump in the pipeline. The dosage should be tailored by our technical engineers based on your system's characteristics to ensure optimal effectiveness of the product.
Product Characteristics-
Single liquid formulation for easy use, saving on equipment costs for dosing tanks and metering pumps
-
Prevents deposition of calcium carbonate and iron oxide, maintaining boiler combustion efficiency and reducing fuel expenses
-
Removes dissolved oxygen from boiler water, preventing pitting corrosion caused by oxygen, and extending the boiler's lifespan
-
-
Does not contain inorganic phosphates, preventing calcium phosphate deposition in feedwater pipelines that could reduce pipe diameter or cause blockages
-
Complies with U.S. Food and Drug Administration (FDA 21CFR 173.310) regulations, suitable for boilers in food processing facilities
PrecautionsPHS-550 is non-flammable, non-explosive, and slightly alkaline. In case of contact with skin or eyes, rinse thoroughly with plenty of water -
-
AppearanceColorless or light yellow liquidSpecific Gravity (25°C)1.21±0.1pH(1% solution)8~10PackagingNet weight of 25 kilograms or 200 kilograms in plastic drums
-
Product Features IntroductionPHS-550 is a boiler water deaerator primarily composed of phosphates, dispersants, defoamers, and deoxygenating agents. It effectively prevents both scale deposition and oxygen pitting corrosion in boiler water systems operating at low to medium pressures (less than 25 kg/cm2), without a condensate water recovery system.
PHS-550 can be added either as a concentrate or after dilution. It is recommended to parallel inject it using a metering pump with the feedwater pump, ideally upstream of the feedwater pump in the pipeline. The dosage should be tailored by our technical engineers based on your system's characteristics to ensure optimal effectiveness of the product.
Product Characteristics-
Single liquid formulation for easy use, saving on equipment costs for dosing tanks and metering pumps
-
Prevents deposition of calcium carbonate and iron oxide, maintaining boiler combustion efficiency and reducing fuel expenses
-
Removes dissolved oxygen from boiler water, preventing pitting corrosion caused by oxygen, and extending the boiler's lifespan
-
-
Does not contain inorganic phosphates, preventing calcium phosphate deposition in feedwater pipelines that could reduce pipe diameter or cause blockages
-
Complies with U.S. Food and Drug Administration (FDA 21CFR 173.310) regulations, suitable for boilers in food processing facilities
PrecautionsPHS-550 is non-flammable, non-explosive, and slightly alkaline. In case of contact with skin or eyes, rinse thoroughly with plenty of water -
-
Specification SheetAppearanceColorless or light yellow liquidSpecific Gravity (25°C)1.21±0.1pH(1% solution)8~10PackagingNet weight of 25 kilograms or 200 kilograms in plastic drums
