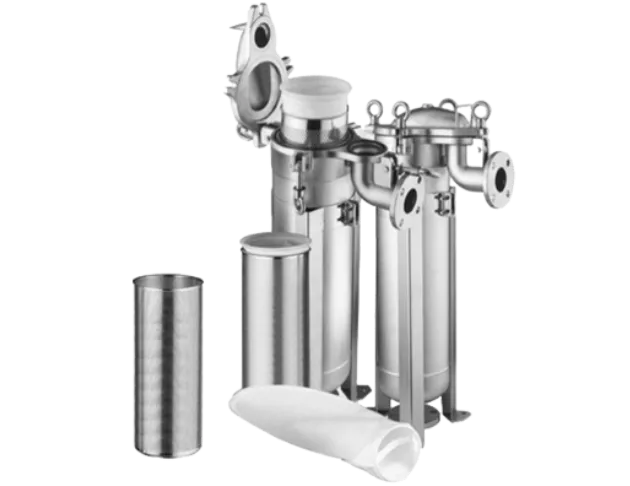

Upward Inlet Bag Filter
-
-
The top cover is a patented mold design, featuring a one-piece molded flip-top design
-
It is fixed on the machine without the need for additional space, saving space
-
Convenient independent O-ring for inlet and outlet, reducing the chance of liquid leakage
-
Provides stable filtering quality with an upward-flow filtration channel design (from top to bottom), allowing direct flushing of filtered liquid without the need for a press plate
-
Ensures even distribution of filter bags without floating, ensuring good filtration efficiency
-
Adjustable movable frame to accommodate on-site pipeline requirements
-
-
Body MaterialSUS304 . SUS316 . SUS316LCaliber1/2" to 3" - threaded, flanged, various special fittings available on requestO-ringEPDM . VITONSurface TreatmentElectrolysis, various special surface treatmentsOptional AccessoriesVarious filter bags, bag press, bag support rack, metal float ballFilter Cartridge Specifications10”、20”、30”、40”Design Pressure10Kg/cm2Operating Pressure7Kg/cm2Design Temperature100℃Operating Temperature75℃
-
Product Features Introduction
-
The top cover is a patented mold design, featuring a one-piece molded flip-top design
-
It is fixed on the machine without the need for additional space, saving space
-
Convenient independent O-ring for inlet and outlet, reducing the chance of liquid leakage
-
Provides stable filtering quality with an upward-flow filtration channel design (from top to bottom), allowing direct flushing of filtered liquid without the need for a press plate
-
Ensures even distribution of filter bags without floating, ensuring good filtration efficiency
-
Adjustable movable frame to accommodate on-site pipeline requirements
-
-
Specification SheetBody MaterialSUS304 . SUS316 . SUS316LCaliber1/2" to 3" - threaded, flanged, various special fittings available on requestO-ringEPDM . VITONSurface TreatmentElectrolysis, various special surface treatmentsOptional AccessoriesVarious filter bags, bag press, bag support rack, metal float ballFilter Cartridge Specifications10”、20”、30”、40”Design Pressure10Kg/cm2Operating Pressure7Kg/cm2Design Temperature100℃Operating Temperature75℃
